• Open Access
    Original Article

    Detection of mild traumatic brain injury in pediatric populations using BrainCheck, a tablet-based cognitive testing software: a preliminary study

    Siao Ye1
    Brian Ko2
    Huy Q. Phi3
    Kevin Sun4
    David M. Eagleman5
    Benjamin Flores4
    Yael Katz4
    Bin Huang4*
    Reza Hosseini Ghomi4*

    Explor Med. 2020;1:396-405 DOI: https://doi.org/10.37349/emed.2020.00027

    Received: May 11, 2020 Accepted: October 29, 2020 Published: December 31, 2020

    Academic Editor: Rhoda Au, Boston University School of Medicine, USA

    This article belongs to the special issue Digital Biomarkers: The New Frontier for Medicine and Research

    Abstract

    Aim:

    Despite its high frequency of occurrence, mild traumatic brain injury (mTBI), or concussion, is difficult to recognize and diagnose, particularly in pediatric populations. Conventional methods to diagnose mTBI primarily rely on clinical questionnaires and sometimes include neuroimaging or pencil and paper neuropsychological testing. However, these methods are time consuming, require administration/interpretation from health professionals, and lack adequate test sensitivity and specificity. This study explores the use of BrainCheck Sport, a computerized neurocognitive test that is available on iPad, iPhone, or computer desktop, for mTBI assessment. The BrainCheck Sport Battery consists of 6 gamified traditional neurocognitive tests that assess areas of cognition vulnerable to mTBI such as attention, processing speed, executing functioning, and coordination.

    Methods:

    We administered BrainCheck Sport to 10 participants diagnosed with mTBI at the emergency department of Children’s hospital or local high school within 96 h of injury, and 115 normal controls at a local high school. Statistical analysis included Mann-Whitney U test, chi-square tests, and Hochberg tests to examine differences between the mTBI group and control group on each assessment in the battery. Significant metrics from these assessments were used to build a logistic regression model that distinguishes mTBI from control participants.

    Results:

    BrainCheck Sport was able to detect significant differences in Coordination, Stroop, Immediate/Delayed Recognition between normal controls and mTBI patients. Receiver operating characteristic (ROC) analysis of our logistic regression model found a sensitivity of 84% and specificity of 81%, with an area under the curve of 0.884.

    Conclusions:

    BrainCheck Sport has potential in distinguishing mTBI from control participants, by providing a shorter, gamified test battery to assess cognitive function after brain injury, while also providing a method for tracking recovery with the opportunity to do so remotely from a patient’s home.

    Keywords

    mTBI, concussion, BrainCheck, neurocognitive testing

    Introduction

    Mild traumatic brain injury (mTBI), or concussion, is an increasing public health concern not only due to its growing frequency of occurrence, but lack of guidelines and biomarkers that make diagnosis challenging [1]. This is particularly concerning in the pediatric population whose ongoing cognitive maturation makes them more vulnerable to head injury than the adult population [2]. The diagnostic utility of neuroimaging is limited, and current recommendations do not recommend routine imaging for mTBI unless otherwise clinically indicated [1]. Furthermore, literature evaluating sports-related mTBI has indicated that young athletes with mTBI may not recognize alarming symptoms due to a lack of awareness, understanding, or as a result of their cognitive impairment [3]. Thus, self-reported post-concussion symptoms are not reliable in this population. Additionally, while there are several concussion grading systems, there is little agreement between the systems on how they define and assess mTBI, and a collectively agreed gold-standard grading system does not exist [4]. Self-reporting concussion symptoms are often at odds with social pressures on a younger person to perform both educationally and athletically and place a strong bias making these measures more inaccurate [5].

    Although neuropsychological tests were developed to more accurately measure cognitive deficits in mTBI, these tests have their limitations. Typically, they require a neuropsychologist or psychometrist to administer, score, and interpret the results of the battery of tests. More importantly, they lack adequate test sensitivity and specificity and are susceptible to practice effects that occur when tests are repeated more than once [6].

    This study explores an alternative solution to address the barriers associated with mTBI assessment. The BrainCheck Sport Battery is a rapid, self-administered, and computerized neurocognitive test that assesses various areas of cognition, such as attention, processing speed, coordination, and executive functioning. Its diagnostic accuracy was previously validated as a testing method for traumatic brain injuries among adults, and it is classified as a diagnostic aid by the FDA [7]. However, the BrainCheck Sport Battery has not been explored for use in the detection of pediatric mTBI. Thus, the primary objective of this preliminary study is to assess the utility of BrainCheck Sport as a diagnostic tool for mTBI in the pediatric population.

    Materials and methods

    This study was approved by the Baylor College of Medicine institutional review board. Participant recruitment took place at the emergency department (ED) of Texas Children’s Hospital (TCH) in Houston, TX and Morton Ranch High School (MRHS) in Katy, TX. MRHS is a large local public high school with a diverse student population, multiple sports teams, and experienced staff assisting research. The recruitment period took place over one school semester at MRHS.

    Study setting

    Inclusion criteria

    Participants were required to be:

    • Aged 8 to 18 years within the pediatric age range defined by the American Academy of Pediatrics [8].

    • Have corrected or perfect vision and hearing, and complete use of both hands.

    • Provided voluntary, written, informed consent to participate in the study.

    Exclusion criteria

    Participants meeting any of the following criteria were excluded:

    • Participants unable to follow directions appropriately for testing.

    • Participants with any history of traumatic brain injury, epilepsy, or neurological disorder, prior to the data collection/ED visit, as assessed by self-report.

    Participants were categorized into the mTBI group if they received an official physician’s diagnosis of concussion or mTBI according to the American Congress of Rehabilitation Medicine (ACRM) criteria [9] during ED visit or recruitment at MRHS. Participants in the control group were interviewed for their history of traumatic brain injury, epilepsy, or neurological disorder, and those without these histories by the time of testing were eligible for the control group. At the end of the recruitment period, a total of 136 participants were approached and recruited, which included 126 participants in the control group and 10 participants in the mTBI group. Participants who did not meet inclusion criteria and met the exclusion criteria were not included in the study. In the end, we enrolled a total of 115 participants in the control group and 10 participants in the mTBI group.

    Test administration

    mTBI participants were administered Version 3 of the BrainCheck Sport Battery on the iPad within 96 h of injury by an ED nurse if recruited at TCH or by an athletic trainer if recruited at MRHS. Control participants, composed of MRHS athletes, were administered BrainCheck Sport by a research coordinator prior to the athletic season.

    Test measures

    A short description of each assessment that comprises the BrainCheck Sport Battery is listed in Table 1. A more detailed description provided of the battery has been described previously [7].

    Neuropsychological assessments in the BrainCheck Sport Battery

    Assessment Description Measurement
    Flanker We presented participants with a target arrow pointing to the left or right. The target was surrounded by congruent (> > > > >), or incongruent (<< > <<) arrows. Participants identified the direction of the target as quickly and accurately as possible. Reaction time
    Digit Symbol Substitution Participants must match an arbitrary correspondence of symbols to digits; when presented with a new symbol, they input as quickly as possible the corresponding digit. Cognitive processing
    Stroop Participants are instructed to find a word matching the given name of a color. There are two types of trials: CONGRUENT in which the word name and font color are the same (e.g., the word RED presented in red font), and INCONGRUENT in which the word name indicates a different color than the font (e.g., the word RED presented in green font). Cognitive executive function
    Trail Making Participants are instructed to connect a set of 25 dots in their correct order as rapidly as possible. Trail Making Test A uses only numbers (1 through 25), while Trail Making Test B employs alternating letters and numbers (1 – A – 2 – B – 3 – C –…). Visual attention and cognitive flexibility
    Coordination A ball is displayed on the tablet, moving according to the tilt of the tablet. A participant holds the tablet out in front at arm’s length and tilts it appropriately to keep the ball in a central circle. Coordination ability
    Immediate and Delayed Recognition First, immediate recognition is measured by serially displaying 10 words, and then asking whether a word was just seen—either a distractor word or a target word (20 trials). At the end of the testing battery, without seeing the original list again, participants are again presented with 20 words and asked whether each word was presented before. Memory
    Display full size

    Statistical analyses

    Mann-Whitney U test was used to examine differences in age in the mTBI and control groups (Wilcoxon rank sum statistic W and P-value is reported), and a chi-square test was used to examine differences in sex between the two groups. Mann-Whitney U test was also used to compare groups on each assessment metric and the Hochberg test was used to adjust P-values for multiple comparisons. The most significant metrics from each assessment were used to generate a logistic regression model. Sensitivity and specificity of the overall battery was evaluated using receiver operating characteristic (ROC) curve analyses with a cutoff score that represented the maximum values sensitivity and specificity could reach. Data analysis was performed using the R statistical programming language in RStudio version 3.3.1.

    Results

    Demographics

    The overall sex distribution was unbalanced because most athletes participated in the study were males (Figure 1). Enrolled participant age ranged from 8 to 18 years, with a mean age of 14.7 and standard deviation of 1.6 (Figure 2). Nevertheless, there was no statistically significant difference in sex between the mTBI and control groups (χ2 = 0.005, P-value = 0.94). Similarly, no significant difference in age was detected between the mTBI and control groups (W = 499.5, P-value = 0.48).

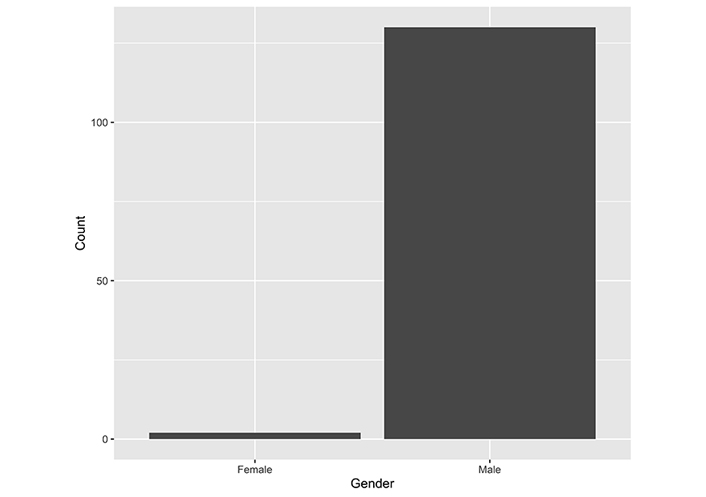

    Sex distribution of participants

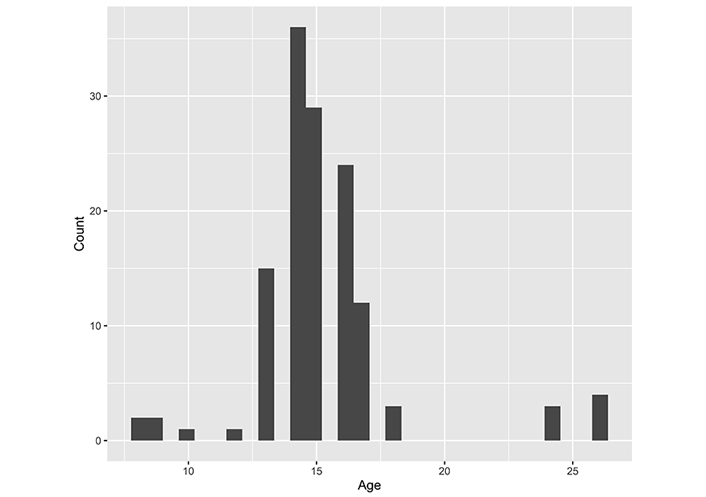

    Age distribution of participants

    Assessments scores on mTBI

    The BrainCheck Sport assessments evaluate different cognitive domains. As shown in Figure 3 and Table 2, we found that mTBI and control participants showed significant differences on raw scores of Delayed Recognition (P < 0.001), Immediate Recognition (P < 0.001), the Stroop test (P < 0.01), and the Coordination test (P< 0.001). In contrast, no significant differences were observed for the Trail Making test, the Flanker test, and the Digit Symbol Substitution test (Table 2).

    Boxplots of BrainCheck Sport assessment metrics for the control group and the mTBI group

    Mann-Whitney U test comparison between the mTBI and control groups on the BrainCheck Battery assessment metrics, with Benjamini-Hochberg adjusted P-values.

    Assessment Metrics Adjusted P-value Explanation
    Coordination balance_mean_distance_from_center < 0.001* Mean radial distance from center circle
    balance_percent_in_target_mean < 0.001* Mean of percentage time in circle
    balance_position < 0.001* Mean position from the circle center
    balance_total_duration_in_circle < 0.001* Total duration time in circle
    balance_total_duration_out_circle < 0.001* Total duration time out of circle
    balance_total_duration_unpressed 0.95 Total duration time not pressing the screen
    balance_total_number_exits 0.80 Total number of times existing the circle
    Digit Symbol Substitution digit_symbol_correct_per_second_mean 0.80 Mean of correct responses in a second
    digit_symbol_duration 0.10 Total time taken to complete assessment. Time starts after digit display and ends when correct answer is completed
    Flanker flanker_correct_mean 0.28 Mean of correct responses
    flanker_reaction_time_central_mean 0.87 Mean reaction time of all correct responses in central cue trials
    flanker_reaction_time_congruent_mean 0.51 Mean of all reaction times when arrows point in same direction
    flanker_reaction_time_correct_mean 0.87 Mean reaction time of all correct responses
    flanker_reaction_time_correct_median 0.93 Median reaction time of all correct responses
    flanker_reaction_time_incongruent_mean 0.95 Mean of all reaction times when arrows point in opposite directions
    flanker_reaction_time_incorrect_mean 0.28 Mean reaction time of all incorrect responses
    flanker_reaction_time_spatial_mean 0.83 Mean reaction time of all correct responses in spatial cue trials
    Immediate and Delayed Recognition delayed_recognition_correct < 0.001* Number of correct responses
    immediate_recognition_correct < 0.001* Number of correct responses
    Stroop stroop_basic_reaction_time_mean 0.91 Mean reaction time for neutral words
    stroop_basic_reaction_time_median 0.87 Median reaction time for neutral words
    stroop_effect_ms_mean < 0.001* Mean reaction time incongruent - congruent (in ms)
    stroop_effect_ratio < 0.001* Median reaction time of incongruent / median reaction time of congruent
    stroop_reaction_time_congruent_mean 0.006* Mean reaction time for all correct answers in congruent trials
    stroop_reaction_time_incongruent_median 0.057 Mean reaction time for all correct answers in incongruent trials
    Trail Making trails_b_duration_median 0.98 Median of response times between each click for TrailMaking B
    trails_b_duration_mean 0.80 Mean of all response times between clicks for Trail Making B
    trails_a_duration_mean 0.87 Mean of all response times between clicks for Trail Making A
    Display full size

    Statistically significant P-values

    These preliminary results demonstrate that participants who had an mTBI exhibited worse performance in BrainCheck Sport assessments of memory, executive, and coordination on the battery, which are consistent with results of golden standard neuropsychological tests [1012]. In addition, they showed no significant deterioration in their cognitive performance and attention, which has also been observed in previous studies [13, 14].

    Logistic regression

    For the logistic regression model, 29 observations were deleted due to missing data in their Coordination assessment, therefore it utilized 86 of the participants in our control group and 10 of the participants in the mTBI group. We used “delayed_recognition_correct”, “stroop_effect_ratio”, “immediate_recognition_ correct”, “balance_percent_in_target_mean”, “digit_symbol_duration”, “flanker_correct_mean”, “trails_a_ duration_mean”, “trails_b_duration_median” as the metrics for our model. Based on the logistic regression model, the Stroop test, the Immediate Recognition test, the Coordination, and Trail-making tests were statistically significant at α = 0.05, while the rest were not statistically significant (Table 3). We performed a variance inflation factor (VIF) check, which showed no values greater than 2, rejecting the existence of collinearity in our model. Furthermore, the model residuals were checked and no influential outliers were present. We then performed ROC analysis methods to determine the optimal threshold for the logistic regression model that could maximize sensitivity and specificity in distinguishing between the control and mTBI groups. The ROC curve (Figure 4) had an area under the curve (AUC) of 0.884 (0.818–0.950, 95% CI). We found that the BrainCheck Sport Battery could achieve a sensitivity of 84% and a specificity of 81% when we chose 0.28 as the optimal decision threshold (Figure 4). In other words, if the model predicted probability for a participant is greater than 0.28, the participant is categorized to the mTBI group.

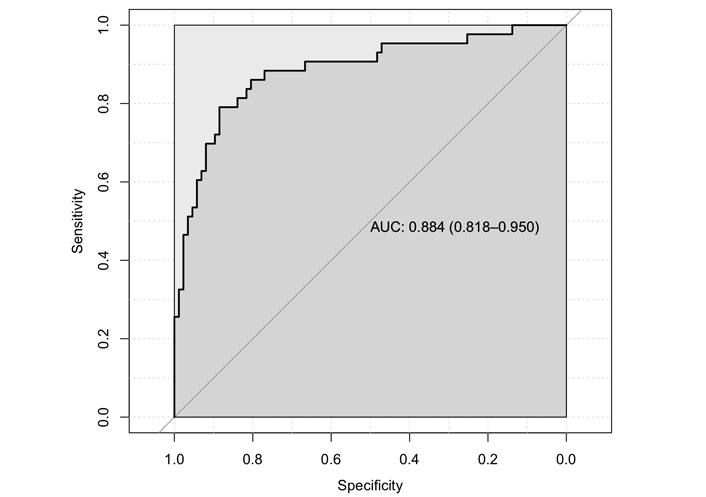

    ROC curve of logistic regression with reported AUC and 95% CI

    Summary of logistic regression results

    Assessment (metric) β coefficient β std. error P-value
    Coordination (balance_percent_in_target_mean) –2.30 0.97 0.018*
    Digit Symbol Substitution (digit_symbol_duration) –1.93 0.89 0.03*
    Immediate Recognition (immediate_recognition_correct) –0.42 0.20 0.03*
    Stroop (stroop_effect_ratio) 2.86 0.83 0.0006*
    Trail Making B (trails_b_duration_median) 1.13 0.52 0.03*
    Trail Making A (trails_a_duration_mean) –0.75 1.04 0.83
    Delayed Recognition (delayed_recognition_correct) –0.19 0.14 0.18
    Flanker (flanker_correct_mean) 0.015 0.07 0.83
    Intercept 9.40 4.61 0.04*
    Display full size

    Statistically significant P-values

    Discussion

    The findings of this study demonstrated that BrainCheck Sport was able to discriminate mTBI patients from the control group on some battery assessments and achieved decent levels of sensitivity (84%) and specificity (81%) when classifying mTBI, despite the small sample size of the mTBI population. This is achieved by evaluating the cognitive function, memory, and coordination of the participants under tests. These preliminary results reflect that BrainCheck Sport has potential as a diagnostic aid for pediatric mTBI, with similar accuracy as in the adult population [7].

    Our results demonstrated that after mTBI, patients experienced deficits on Immediate and Delayed Recognition tests; Coordination tests; and the Stroop color tests which represent deficits in cognitive domains consisting of short-term memory, coordination, and executive function, specifically inhibition and attention, respectively. These are typical symptoms observed after sustaining an mTBI. However, mTBI patients were not observed to have diminished performance on Trail Making, Digit Symbol Substitution, or the Flanker tests which represent cognitive domains consisting of executive function, specifically, cognitive flexibility, information processing, and speed, and visual attention, respectively. As suggested by previous studies, not all cognitive domains are affected by mTBI [13, 14]. However, De Beaumont et al. [15] found that athletes with a concussion history performed worse in the Flanker Test. This could be due to the repeated injuries these athletes sustained, significantly hindering their cognitive performance over time. In our study, we excluded participants with a history of mTBI, and our participants were relatively younger. This could explain the non-significant differences in Flanker test performance observed in our study, as older participants who have experienced repeated concussions over time could present different symptoms than younger participants with no prior mTBI history. On the other hand, the majority of our participants were only assessed within 96 h after injury leaving time for symptoms to possibly resolve. Further studies should control for time of administration after injury more stringently by restricting the timeframe to within 24 h or less.

    It is important to keep in mind that our participants were from an atypical population. The control group was composed of athletes and was not fully representative of the pediatric population. Since the mTBI experimental group included both sports related and non-sports related mTBIs, a control group with similar demographics would have contributed to a more balanced design. In addition, both our experimental and control groups were composed of only a few females. Such sex differences in mTBI injury severity have been reported in previous literature [16]. To investigate whether there are sex differences in the neurocognitive measures examined in the BrainCheck Sport Battery, future research should utilize a more evenly distributed ratio of males to females in the participants pool. Additionally, despite being a statistically significant predictor, the coordination test occasionally suffered from software malfunctioning during testing and resulted in several cases of missing data in both the experimental and control groups. As a retrospective study, it is hard to determine if all cases of malfunctioning were properly documented and fully taken into consideration.

    Another possible confounding factor in our sample was the combined grouping of pre-pubescent, pubescent, and post-pubescent aged participants. While we did not observe any significant difference in age between the control and patient groups, previous work has shown that performance on computerized testing batteries improves across adolescent development at even larger magnitudes within attention and working memory cognitive domains [17], which are demonstrated to be affected by mTBI. We also sacrificed statistical power with a smaller mTBI group. While a larger experimental group would likely have given more robust results, we proceeded with statistical analysis to look for preliminary results as diagnosing pediatric mTBI is challenging. The complexity in diagnosis is multifactorial, which includes: low reliability of subjective history of symptoms relative to the adult population and the subsequent increased importance on objective findings [3], current standard of practice to avoid neuroimaging unless there are obvious signs of serious intracranial injury [1], and the large range of symptoms after concussion with a wide spectrum of cognitive impairment [9]. Thus, providing these preliminary objective data may support clinicians with a diagnostic aid in this uniquely difficult population.

    Currently, there are a variety of different test batteries and screeners used in clinical practice to aid in the diagnosis of mTBI. BrainCheck Sport has potential as another option among the computerized neurocognitive tests by providing a shorter, gamified test battery that attempts to comprehensively examine and assess cognitive functioning after brain injury. This preliminary study demonstrates that BrainCheck Sport performs well in detecting and classifying mTBI patients and may be useful as a diagnostic aid.

    Abbreviations

    AUC:

    area under the curve

    ED:

    emergency department

    MRHS:

    Morton Ranch High School

    mTBI:

    mild traumatic brain injury

    ROC:

    receiver operating characteristic

    Declarations

    Author contributions

    DME and YK contributed conception and design of the study; Data acquisition was performed by BF; SY and BH performed the statistical analysis, under the supervision of RHG. SY, BK and HQP wrote the first draft of manuscript, which was revised and approved by BH and RHG. SY, BK, HQP, KS and BH revised the manuscript for submission. All authors read and approved the final manuscript.

    Conflicts of interest

    The following authors declare the following competing interests: SY, BF, YK, BH, KS, RHG reports personal fees from BrainCheck, outside the submitted work; DME, BF, YK, BH, RHG reports receiving stock options from BrainCheck.

    Ethical approval

    This study protocol was reviewed and approved by the Baylor College of Medicine IRB.

    Consent to participate

    Voluntary written informed consent to participate in the study was obtained from all participants.

    Consent to publication

    Not applicable.

    Availability of data and materials

    Data may be made available by contacting the corresponding author and with a data use agreement.

    Funding

    BrainCheck, Inc, provided support in the form of salaries for authors SY, BF, YK, BH, KS, RHG but did not have any additional role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript, and only provided financial support in the form of some of the authors’ salaries and research materials (the software battery of tests).

    Copyright

    © The Author(s) 2020.

    References

    Lumba-Brown A, Yeates KO, Sarmiento K, Breiding MJ, Haegerich TM, Gioia GA, et al. Diagnosis and management of mild traumatic brain injury in children: a systematic review. JAMA Pediatr. 2018;172:e182847. [DOI] [PubMed]
    Boutis K, Weerdenburg K, Koo E, Schneeweiss S, Zemek R. The diagnosis of concussion in a pediatric emergency department. J Pediatr. 2015;166:121420.e1. [DOI] [PubMed]
    Halstead ME, Walter KD; Council on Sports Medicine and Fitness. Sport-related concussion in children and adolescents. Pediatrics. 2010;126:597615. [DOI] [PubMed]
    Leclerc S, Lassonde M, Delaney JS, Lacroix VJ, Johnston KM. Recommendations for grading of concussion in athletes. Sports Med. 2001;31:62936. [DOI] [PubMed]
    Meier TB, Brummel BJ, Singh R, Nerio CJ, Polanski DW, Bellgowan PSF. The underreporting of self-reported symptoms following sports-related concussion. J Sci Med Sport. 2015;18:50711. [DOI] [PubMed]
    Hinton-Bayre AD, Geffen GM, Geffen LB, McFarland KA, Friis P. Concussion in contact sports: reliable change indices of impairment and recovery. J Clin Exp Neuropsychol. 1999;21:7086. [DOI] [PubMed]
    Yang S, Flores B, Magal R, Harris K, Gross J, Ewbank A, et al. Diagnostic accuracy of tablet-based software for the detection of concussion. PLoS One. 2017;12:e0179352. [DOI] [PubMed] [PMC]
    Hardin AP, Hackell JM; Committee on Practice and Ambulatory Medicine. Age limit of pediatrics. Pediatrics. 2017;140:e20172151. [DOI] [PubMed]
    Kay T, Harrington DE, Adams R, Anderson T, Berroll S, Cicerone K, et al. Definition of mild traumatic brain injury. J Head Trauma Rehabil. 1993;8:867.
    Guskiewicz KM. Assessment of postural stability following sport-related concussion. Curr Sports Med Rep. 2003;2:2430. [DOI] [PubMed]
    Lovell MR, Collins MW, Iverson GL, Field M, Maroon JC, Cantu R, et al. Recovery from mild concussion in high school athletes. J Neurosurg. 2003;98:296301. [DOI] [PubMed]
    Ting WK, Schweizer TA, Topolovec-Vranic J, Cusimano MD. Antisaccadic eye movements are correlated with corpus callosum white matter mean diffusivity, Stroop performance, and symptom burden in mild traumatic brain injury and concussion. Front Neurol. 2015;6:271. [DOI] [PubMed] [PMC]
    Leininger BE, Gramling SE, Farrell AD, Kreutzer JS, Peck EA, 3rd., Neuropsychological deficits in symptomatic minor head injury patients after concussion and mild concussion. J Neurol Neurosurg Psychiatry. 1990;53:2936. [DOI] [PubMed] [PMC]
    Collins MW, Grindel SH, Lovell MR, Dede DE, Moser DJ, Phalin BR, et al. Relationship between concussion and neuropsychological performance in college football players. JAMA;282:96470. [DOI] [PubMed]
    De Beaumont L, Théoret H, Mongeon D, Messier J, Leclerc S, Tremblay S, et al. Brain function decline in healthy retired athletes who sustained their last sports concussion in early adulthood. Brain. 2009;132:695708. [DOI] [PubMed]
    Munivenkatappa A, Agrawal A, Shukla DP, Kumaraswamy D, Devi BI. Traumatic brain injury: does gender influence outcomes? Int J Crit Illn Inj Sci. 2016;6:703. [DOI] [PubMed] [PMC]
    Cromer JA, Schembri AJ, Harel BT, Maruff P. The nature and rate of cognitive maturation from late childhood to adulthood. Front Psychol. 2015;6:704. [DOI] [PubMed] [PMC]
