Design conceptualization

Drawing inspiration from such a perspective article, on top of our research experience, we would like to reanalyze the connotation between the acquired knowledge and nanomedicine design and development. We expect that with our recommendations, the meaning and significance of the original paper could be further enhanced.

Commonly reported nanomedicines include nanoliposomes, solid lipid nanoparticles, nanocapsules, nanospheres, and polymer micelles [4]. Upon the targeting mechanisms of nanomedicines, there are mainly two approaches: passive targeting and active targeting. Passive targeting refers to a drug delivery strategy that leverages the physicochemical properties of nanomedicines—including particle size, surface characteristics, and blood half-life—to achieve targeted distribution through natural physiological mechanisms within the biological system. For example, in a study by Li et al. [5], the deposition of the nanocarriers with a molecular weight of approximately 80 kDa at the tumor site was achieved by utilizing the selectivity increased in blood flow when blood pressure rose due to the lack of a smooth muscle layer in tumor microvessels, the wide endothelial space of blood vessels and the incomplete basement membrane, as well as the defect of lymphatic drainage. It was achieved by combining the inherent characteristics of the nanocarrier, which has a molecular weight exceeding the renal excretion threshold (40 kDa) to avoid rapid clearance, and was adapted to the size of the tumor vascular leaky structure to achieve selective penetration [6]. Active targeting is a method that enhances the targeting property of nanomedicines by modifying specific targeting ligands (such as antibodies, peptide chains, receptor-specific molecules, etc.) on the surface of the nanoparticles. It utilizes natural phenomena in the bodyʼs physiological environment to achieve targeted drug delivery (Figure 2).

Display full size

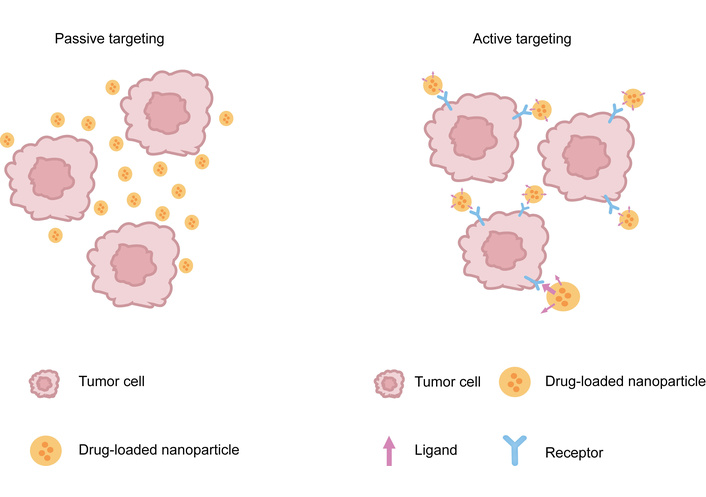

Figure 2. Sketch illustrating active and passive targeting of anti-FGFR1 [17].

As Jariwala et al. [7] stated: Surface functionalization is one of the approaches for modification, which is defined as the introduction of chemical moieties (functional groups or other ligands) on the surface of any material to imbibe the desired characteristics, as well as the differences between functionalized biological materials and non-functionalized biological materials: The surface of non-functionalized materials is heterogeneous and has poor performance, which imposes many limitations in biomedical applications. The biocompatibility of functionalized materials is significantly improved compared to non-functionalized materials. Active targeting and increased loading efficiency are achieved, providing a platform for efficient diagnosis and treatment. As comprehensively reviewed by Mitchell et al. [8], the anti-adhesion strategy: The internal polymer stabilizes the structure and controls the drug release. The outer layer has a natural cell membrane, enabling evasion of immune detection, prolonging circulation time, and ensuring the nanoparticles reach the lesion site, achieving efficient delivery. Biocide-attachment release strategy: The chemotherapy drugs (anti-cancer “bactericidal” agents) are encapsulated within LPHNPs. They remain stable during circulation and are precisely released upon specific internal stimuli in the tumor microenvironment (such as overexpressed enzymes). This not only kills cancer cells but also reduces systemic toxicity. Contact-active biomaterial strategy: The contact-active ligand ensures specific binding to cells, enabling specific recognition of the receptors overexpressed on the cancer cell membrane. This direct contact not only enhances cell uptake but also triggers specific biological signal transduction, thereby achieving better therapeutic effects.

For example, in a series of studies [9], anti-CD19 Fab' antibody fragments that recognize B-cell antigen CD19 were used as targeting ligands modified on the surface of PEGylated liposomes. In this way, the nanoparticles were preferentially taken up by tumor cells through the specific interaction between the ligands and the antigens [10]. Due to the numerous limitations of passive targeting, such as the lack of specific recognition of tumor cells, the targeting efficiency of passive targeting is usually limited, while that of active targeting is relatively higher. It is better to design targeting nanomedicines using the active targeting method [11].

In active targeting, the targeting ligand is the key to providing targeting moieties. Among them, specific antibodies are an excellent targeted ligand [12]. OM-RCA-01, as an anti-FGFR1 antibody, has the effect of specifically targeting FGFR1 that is overexpressed on the cell surface. Therefore, it can be used as an active targeting ligand. Functionalized adjustable drug release can be achieved, for instance, through pH-responsive or enzyme-sensitive linkers for controlled release, thereby enhancing efficacy and reducing side effects. Given that non-small cell lung cancer (NSCLC), breast cancer, glioma, prostate cancer, head and neck tumors, renal cell carcinoma, and other tumor cells have high surface expression of FGFR1, on the nanomedicine's surface, modifying anti-FGFR1 antibodies can endow excellent tumor-targeting performance [3]. It is expected to achieve improved targeted therapeutic efficacy for tumor management by this strategy. We draw on the successful research about the various biological effects that can be provided by nanomedicines decorated with anti-FGFR antibodies by Nguyen et al. [13]. (i) Enhancing the endocytosis of cells: The binding of antibodies to FGFR1 can trigger receptor-mediated endocytosis, and nanoparticles can quickly enter the cells. For instance, in the EGFR-targeting scenario, the nanoparticles conjugated with cetuximab showed a significantly higher internalization rate in cells with overexpressed EGFR compared to non-targeted particles. Therefore, we expect that the anti-FGFR1 nanoparticles will exhibit a similar enhancement of uptake in FGFR1-positive tumor cells. (ii) Increasing tumor accumulation and retention: Compared with H1299 cells with low-level EGFR expression, the therapeutic effect of cetuximab-coated gold nanoparticles was more significant in A549 cells with overexpressed EGFR, indicating that cetuximab achieved selective targeting. Specific binding not only promotes cell uptake but also cooperates with active targeting through the EPR effect to enhance the enrichment and retention of nanoparticles at the tumor site, thereby increasing the local drug concentration. (iii) Improving therapeutic index and reducing systemic toxicity: By delivering therapeutic drugs specifically to tumor cells, targeted nanomedicines can enhance the killing of cancer cells while minimizing off-target effects and toxicity to normal tissues. Furthermore, antibody modification may regulate the immune response, for example, by targeting FGFR1 to influence the balance of pro-inflammatory/anti-inflammatory cytokines in the tumor microenvironment, but further research is needed.

After a literature survey, we have found that there are currently relevant studies. For instance, researchers used anti-FGFR1 antibodies to modify iron oxide nanoparticles to achieve the treatment of human osteosarcoma cells (U2OS) with FGFR1 overexpression tumors with a selective killing effect (Figure 3) [14].

Display full size

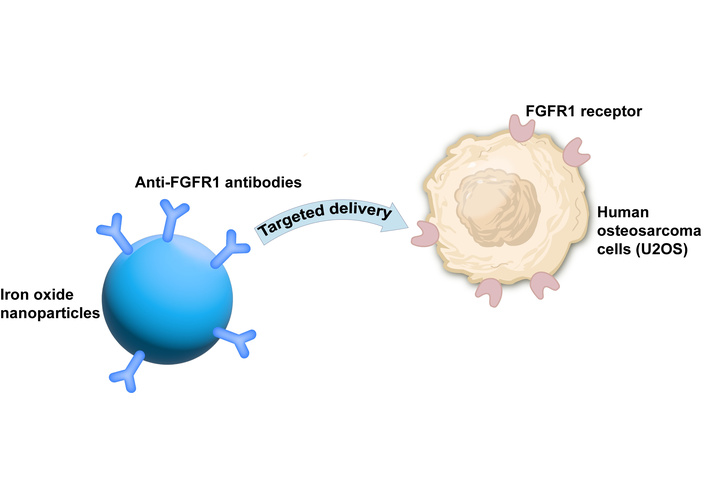

Figure 3. Study using anti-FGFR1 antibodies to modify iron oxide nanoparticles to achieve the treatment of human osteosarcoma cells (U2OS) with FGFR1 overexpression tumors with a selective killing effect [14]. FGFR1: fibroblast growth factor receptor 1.

From the perspective of investigational new drug development, it should be noted that such a modification is different from preparing an antibody-drug conjugate (ADC). ADC refers to a class of targeted therapeutic systems that combine monoclonal antibodies with cytotoxic drugs through a linker [15], essentially belonging to another type of new chemical entity (NCE). Therefore, in the FDAʼs 505b (1) or China NMPAʼs new drug application process, the safety and efficacy of ADC needs to be re-studied independently of the drug itself [16]. Our proposed idea is to incorporate anti-FGFR1 antibodies onto the surface of nanoparticles through physical or chemical methods, thereby creating a new type of drug delivery system without the need to develop a new NCE. The physical methods include adsorption or encapsulation (such as based on hydrophobic interaction); the chemical methods include covalent coupling (such as using EDC/NHS to link the amine groups of the antibody to the carboxyl groups of the nanoparticles). The physical methods are simple but have poor stability, while the chemical methods are stable but require control of the coupling efficiency. For drugs that have already been approved by the FDA, developing an anti-FGFR1 antibody-modified nano-delivery system is essentially modified formulation research (equivalent to the FDAʼs 505b (2) approach or the modified new drug application of China NMPA). The previous research data on the safety and efficacy of the drug itself are still applicable, and thus the cost is relatively low. Hence, for the sake of new drug application, we believe that the design concept of the anti-tumor nanomedicine proposed in this article has certain reference value.

Of course, constructing a nanodelivery system modified with anti-FGFR1 antibodies also involves certain technical difficulties. In particular, how to maintain the quality homogeneity and reproducibility under large-scale production is worthy of in-depth discussion. We suggest focusing on the following issues: Improving antibody modification methods to enhance the stability of antibody-nanoparticle conjugation during the synthesis process; formulating a quality control plan to accelerate the promotion of the clinical application of related drug delivery systems.
